ProSlab hybrid automated turf harvesters hold exceptional value, cutting in every condition and grass variety out there and performing well over a thousand hours per year.

Key Features

Long Life by Design

FireFly machines are designed to last. We carefully choose components for durabiity and make design choices to be maintainable for the long haul.

Read More
ProSlab 160 Features

The ProSlab 160 takes performance to another level with better fuel efficiency, faster transport, improved traction, and a big boost in productivity.

Read More

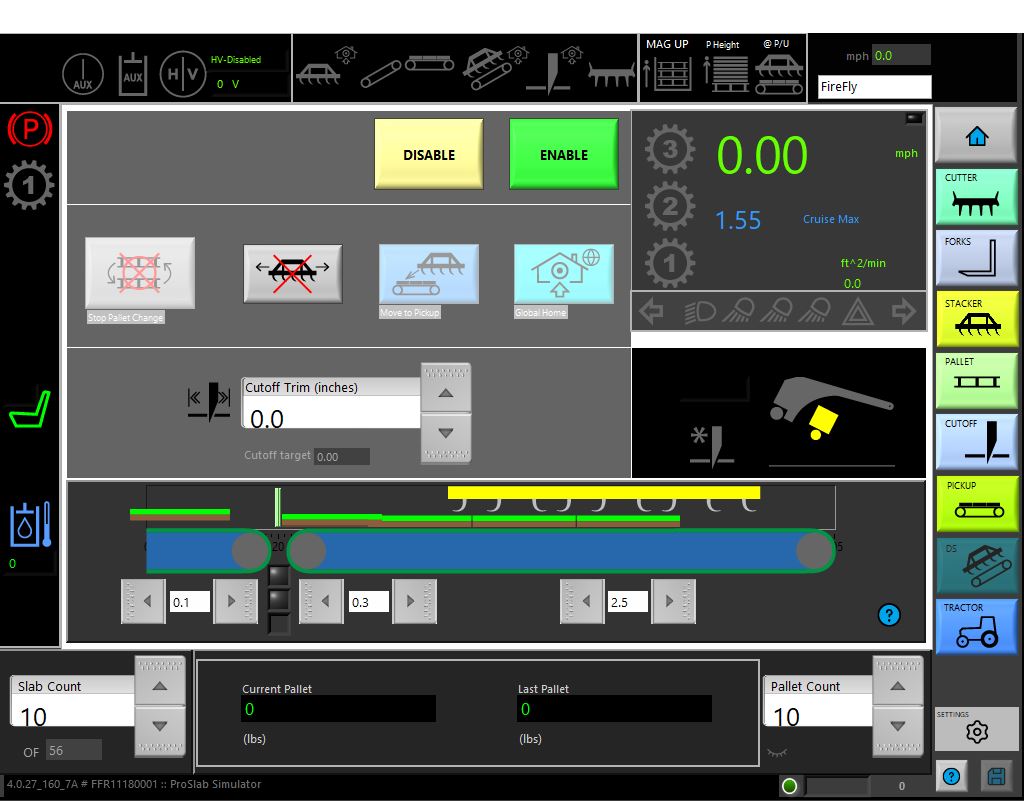

ProSlab Advanced Controls

The ProSlab's sophisticated controls bring you smarter systems that can adapt to varying conditions in ways never before implemented on turf harvesters, maximizing versatility and ROI. Automation made simple.

Read More
Less Fuel, More Turf

Engineered for fuel efficiency from the ground up, our hybrid harvesters stay cooler, operate more smoothly, and last longer.

Read More
A Cut Above

Our harvesters work in the widest variety of conditions, thanks to exclusive ground pressure control algorithms and patented electric chop.

Read More
Gentle on your Fields

Superior weight balance and flotation give FireFly harvesters keeps you cutting even in soft fields without damaging them.

Read More
Steering Assist

Get more grass out of your fields with electronic auto steer and GPS guidance. Cut perfectly straight lines, even in rolling terrain, slopes, and rough ground.

Read More
Patented Slab Accumulation

Patented slab accumulation can be configured for 2 to 4 pieces of varying sizes to allow farms to produce their pallets to their exact specifications without compromising productivity.

Read More
Stacking Up Profits

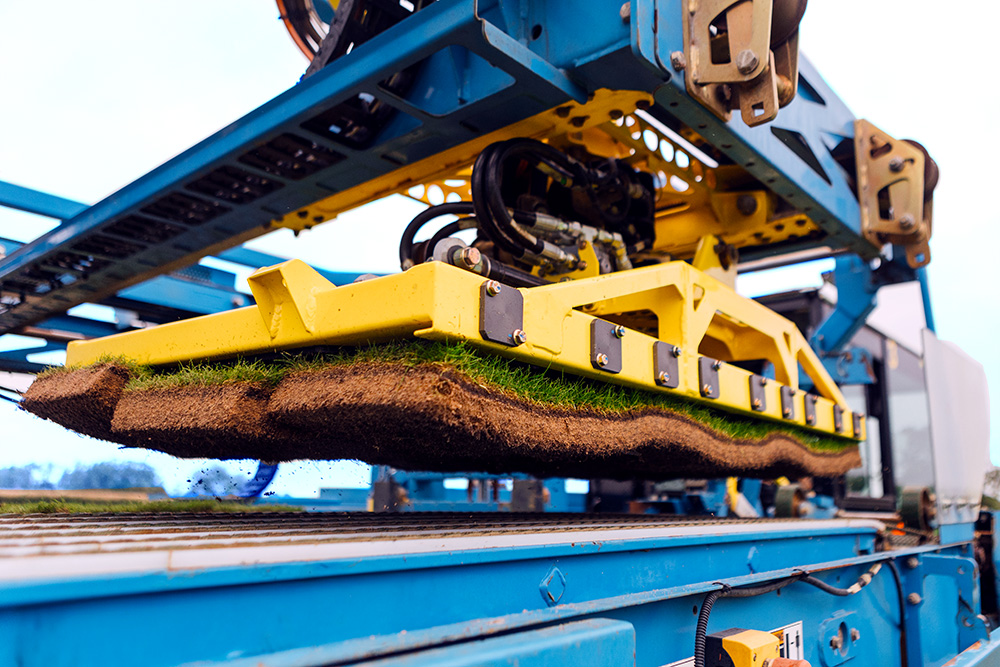

The heart of the ProSlab is our exclusive patented electrically driven SynchroStacker. This stacker is simply the smoothest, fastest and most accurate stacker in the industry.

Read More
TurfView Cab

When an operator can perform the job in comfort, productivity and quality will increase. We pay attention to the details in the cabin to accomplish this. Simply step right in.

Read More



Specifications

Key Specs
U.S. UNITS METRIC
Cutting head width 16, 20, 21, 24 in .4, .5, .53, .6 m
Slab length Electronically adjustable
up to 48 in
Electronically adjustable
up to 1.2 m
Slab thickness Electronically adjustable Electronically adjustable
Pallet height Up to 5 ft 2 in, option for taller Up to 1.6 m, option for taller
Pallet width x height 142×42, 48×48,
48×40, 48×42 in
1.07×1.07, 1.22×1.22,
1.22×1.02, 1.22×1.07 m
Weight 18,000 lbs 8,165 kg
Length 29 ft 3 in 8.9 m
Height 9 ft 6 in 2.9 m
Width 10 ft 9 in 3.3 m
Engine
Engine JCB Turbo-charged 4-cylinder Tier 4 Final
Horsepower 74 hp (55 kw)
Transmission Hydrostatic, Infinitely variable
Fuel tank capacity 60 gal (225 liter)
Standard Features
ProSlab 155C ProSlab 160
Exterior packages Premium LED lighting, Right and Left extended mirrors
High-flotation radial tires 600/50R22.5 Rear (700/50R26.5 Muck tires optional), 500/60R22.5
Front
All wheel drive Manual in rear, automatic in front
UPGRADED TRACTION CONTROL Performance gear ratios for higher transport speed and improved traction control when harvesting in slippery conditions.

Energy Capture System Boosts overall efficiency and speed—and therefore productivity—by 20-30%

Consolidated controller Single, more powerful computer to run both the machine and operator interface
Steering Auto Steer: Right and Left side available, GPS ready
*Navigation option available
Synchronized cutter Synchronizes cutter speed, head boom pressure, and head pressure with ground speed

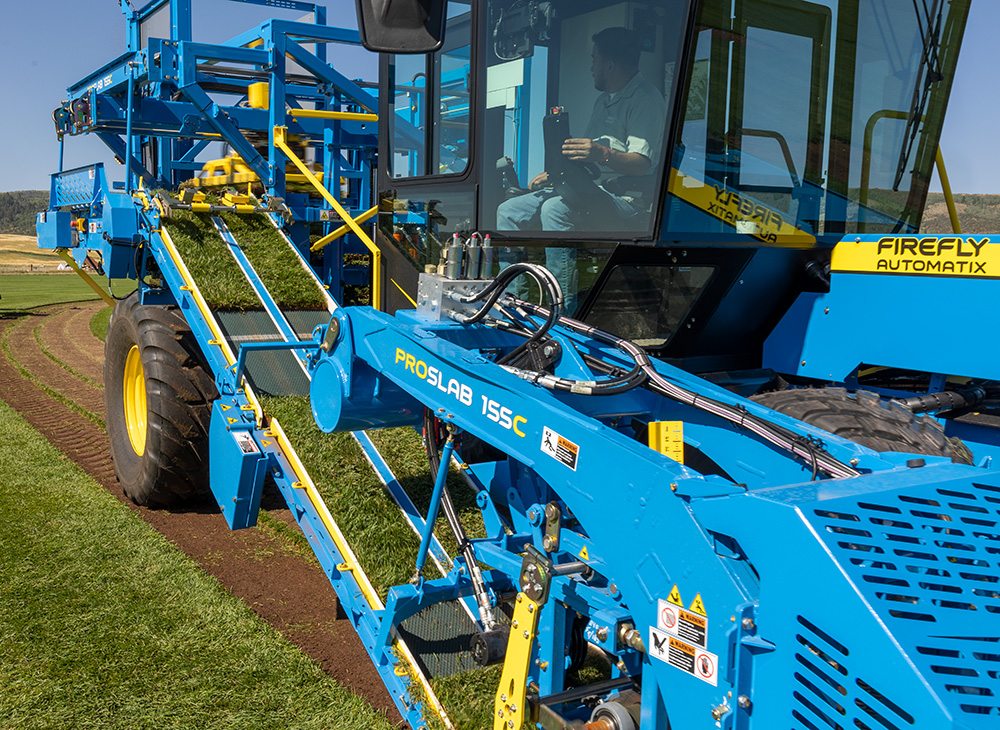

Electric conveyors Upper & pickup (reduces hydraulic oil temperature and boosts fuel efficiency)

Advanced slab detection Multiple sensor options and modes, all configurable on-the-fly
Operator comfort Slip-resistant stairs with handrails, climate-controlled, vibration isolated, extra wide air-ride swivel seat, 360-degree view plus conveyor window and back up camera system
Ergonomic controls Drive-by-wire steering, ergonomic joystick, engine controls above dash
Cab convenience Back access door, premium stereo with Apple CarPlay
and Android Auto, USB/USB-C charging ports, wireless phone
charger/holder, power inverter, cup holders, toolbox and blade storage
Pallet doors Hydraulic power, controlled from cab
Improved pallet weight system Accurately gives the operator feedback on weight per square foot while harvesting
Reduced maintenance Greasepoints replaced with maintenance-free polymer bearings on all pivot joints, self cleaning pre-filter
Lower parts costs Bolt-on components with replaceable wear points
Designed for long life Zinc plating, stainless steel shafts, high-grade bolts, rugged sensors, extra wide stacker drive belts, urethane stacker rollers, high performance flex cable, hardened alloy steel spears, heavy pallet magazine bumper, high quality radial cell batteries and hydraulic hoses with O-ring face seal fittings,
best-in-industry hydraulic filtration
